The Panther-XT Plus is a 1000m rated vehicle fitted with ten 500 Volt DC thrusters - eight horizontal and two vertical - with the option of a third vertical thruster, providing the Panther-XT Plus with exceptional handling and speeds of up to four knots.
The high-powered Panther-XT Plus accommodates two Schilling Orion manipulators plus a wide range of sensors and heavy duty tooling skids, making it ideal for tasks that include drill support, pipeline survey, IRM, and salvage.
Available as a free swimmer or in conjunction with a Tether Management System (TMS) and an A Frame Launch and Recovery system (LARS) with surface equipment available as either free-standing units or integrated into a control cabin.
With ten powerful thrusters and a high payload, the Panther-XT Plus has exceptional handling and a speed of four knots while still maintaining a small footprint.
Designed to carry a range of survey and heavy duty tooling options, which are fitted within the vehicle.
Renowned for an excellent record as a light work and survey vehicle working in shallow water high current conditions.
Two Surface Power Supply Units and a Surface Control Unit supplied as free standing units or fitted inside an air conditioned control container.
Surface Equipment includes Hand Control Unit, keyboard and two colour monitors. An additional hand control unit is available for systems fitted with a manipulator skid.
Cabin Junction Box for connections between the surface and subsea. Includes Fibre Optic MUX with video and data connections. Additional MUX options available.
Available as a free swimming ROV or in conjunction with a Type 8 Tether Management System (TMS) for depths up to 1000 m.
ROV rated to 1000m fitted with eight horizontal thrusters and two vertical thrusters supplied with 500 Volts DC. ROV is fitted with two electronics pods; a main and an auxiliary. The main pod provides interfaces for four LED lights, up to four cameras, a depth sensor and a solid state compass (located inside the main electronics pod) for vehicle auto heading and auto depth. Auto altitude is available as an option when an altimeter is fitted. Several versions of the auxiliary pod are available to meet specific customer's requirements.
Specification | Panther-XT Plus |
Depth Rating (msw) | 1000 |
Dimensions |
|
Length (mm) | 2140 |
Height (mm) | 1217 |
Width (mm) | 1060 |
Weight in air (kg) | 800 |
Payload (kg) | 150 |
Thrust |
|
Forward (kgf) | 353 |
Lateral (kgf) | 248 |
Vertical (kgf) | 105 |
Speed (knots) | >4 |
Power |
|
Power input phases | 3 |
Voltage (VAC) | 380-480 |
Option | 690 |
Frequency (Hz) | 50-60 |
Battery Capacity (kWh) | N/A |
Endurance (Hour) | N/A |

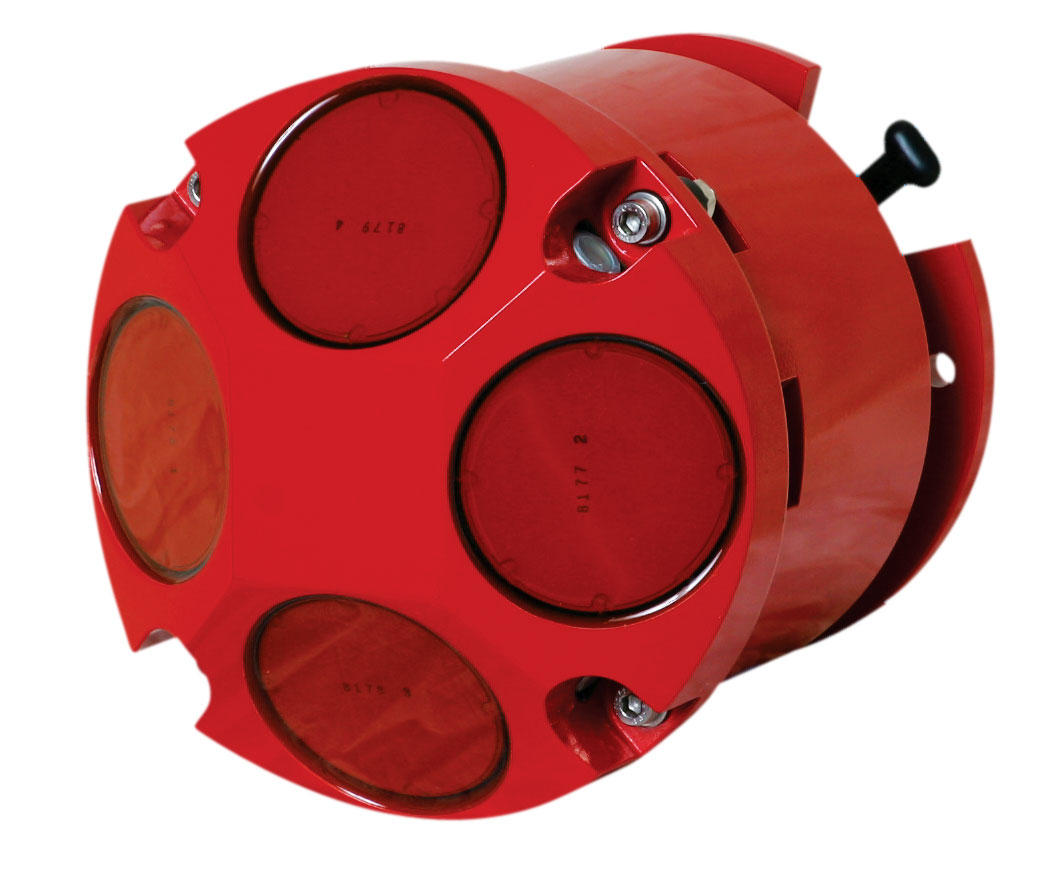

Dedicated sled for inertial navigation systems including doppler velocity log, fibre optic gyro, sound velocity profiler and depth sensor.

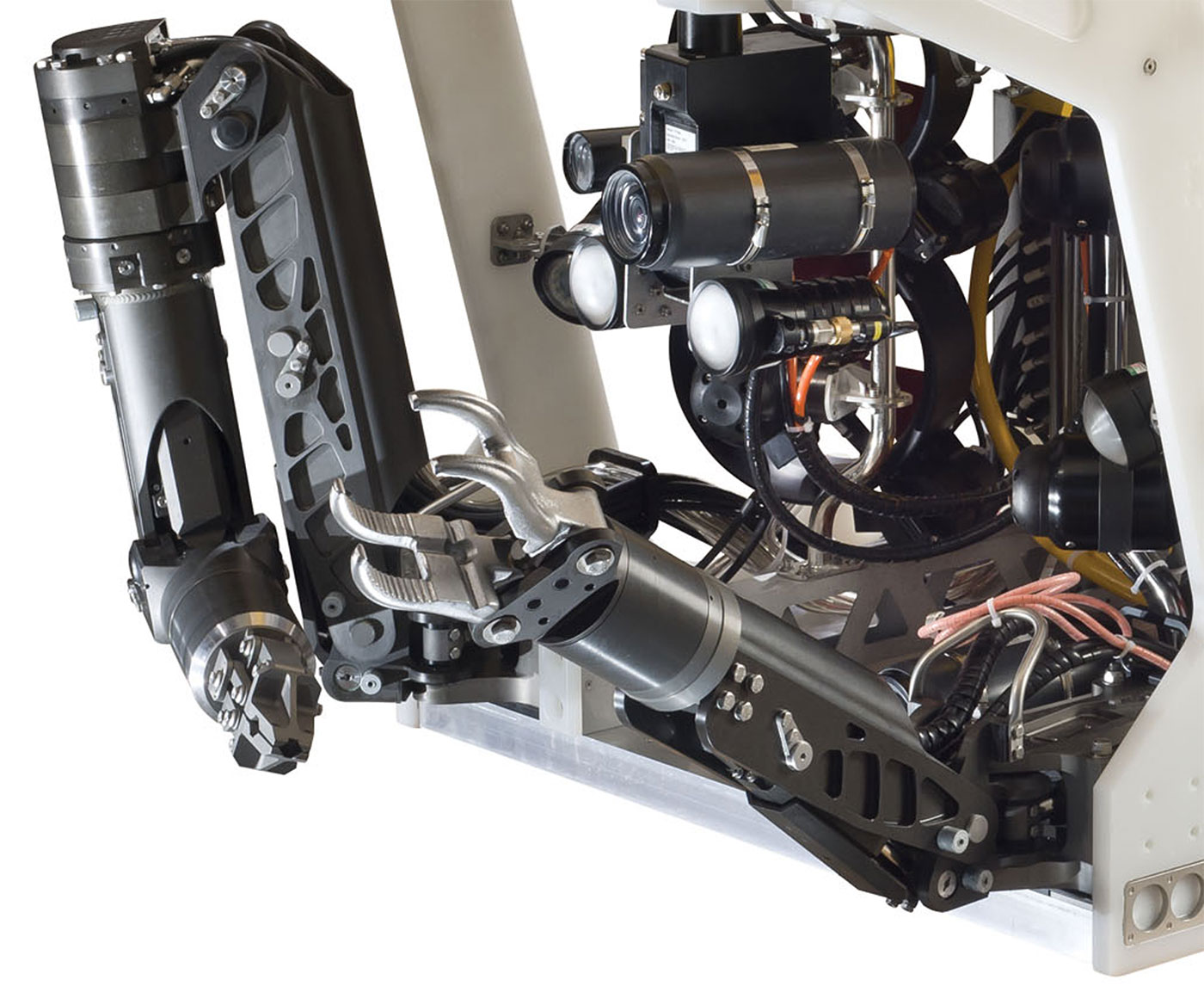

Schilling Orion 7P and 4R manipulator arms fitted. Manipulator camera options available.

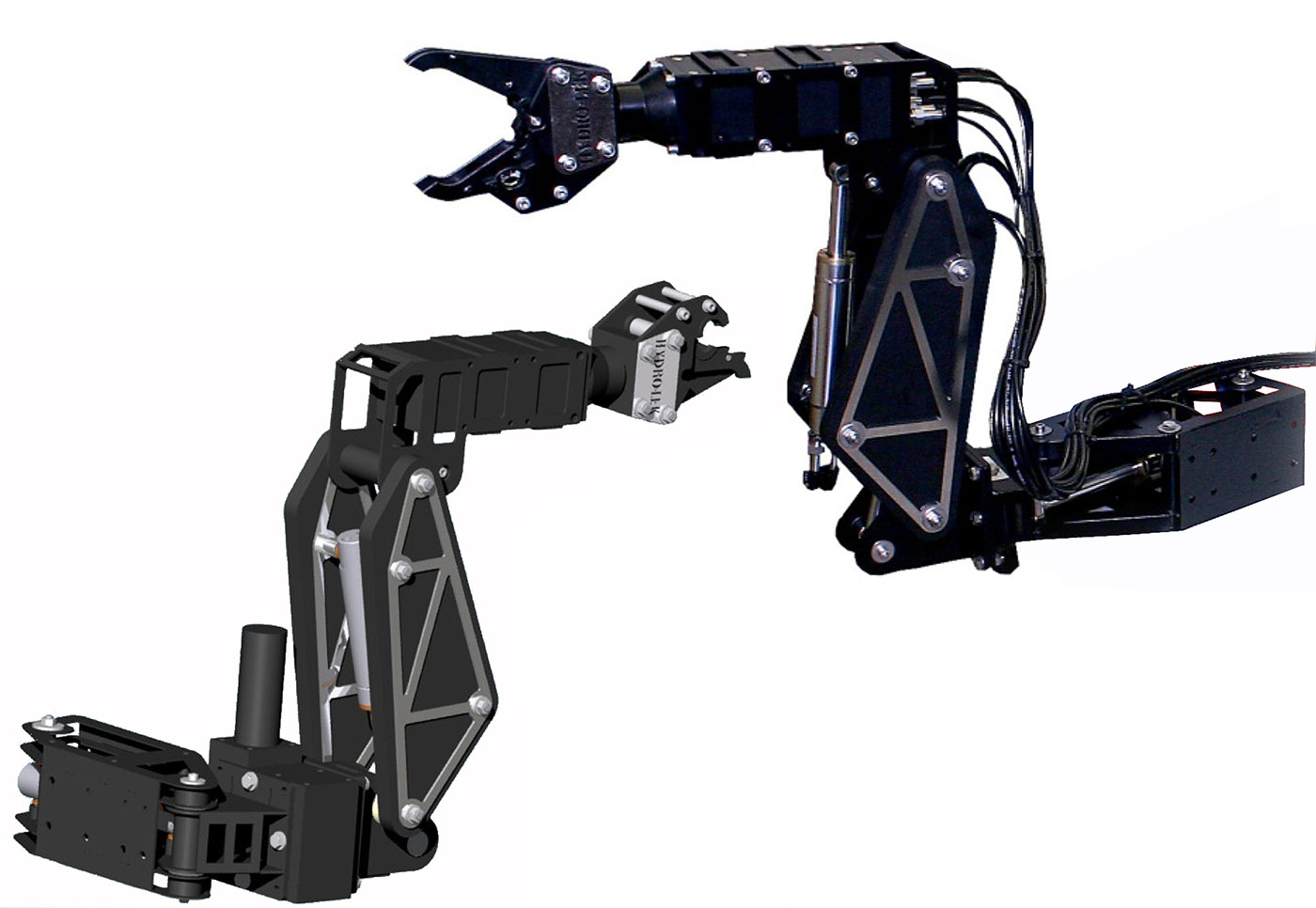

Alternative five and six-function heavy duty manipulator system fitted. Manipulator camera options available.

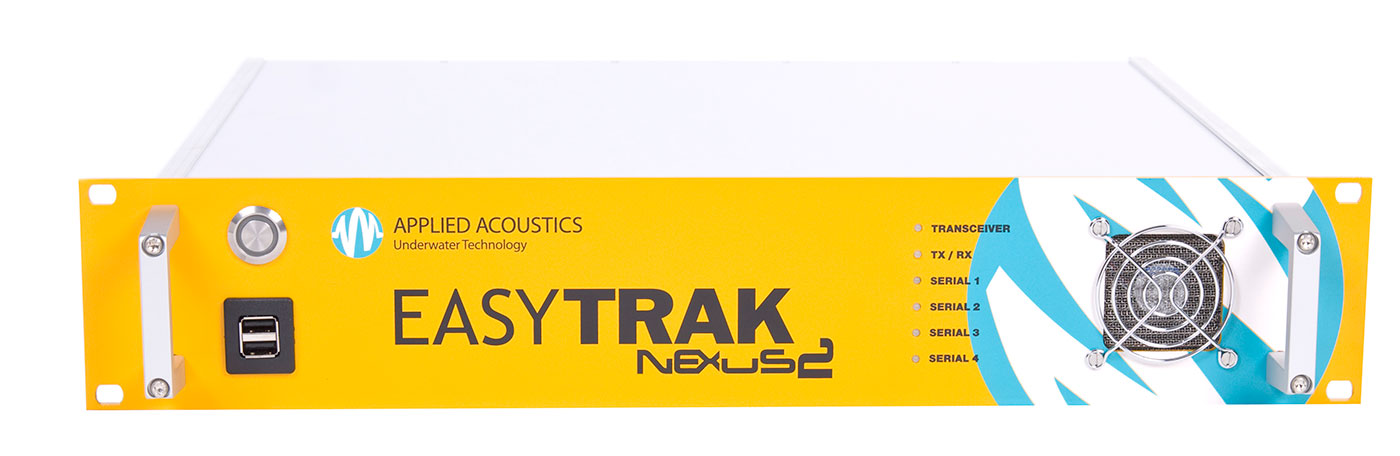

Complete acoustic tracking system used to calculate the position of the vehicle with a fitted acoustic beacon.

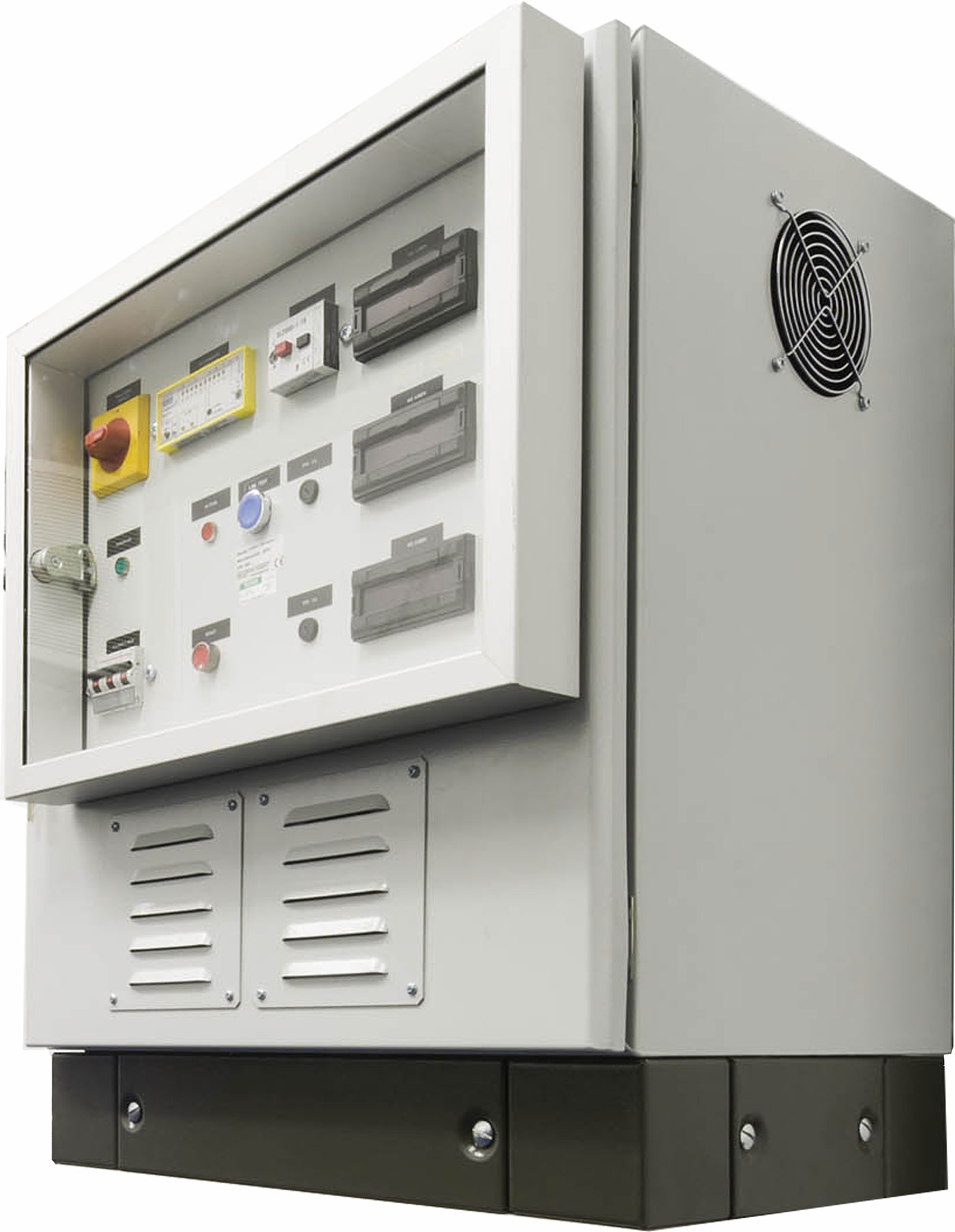

Additional three-phase power supply unit used to power tooling options.

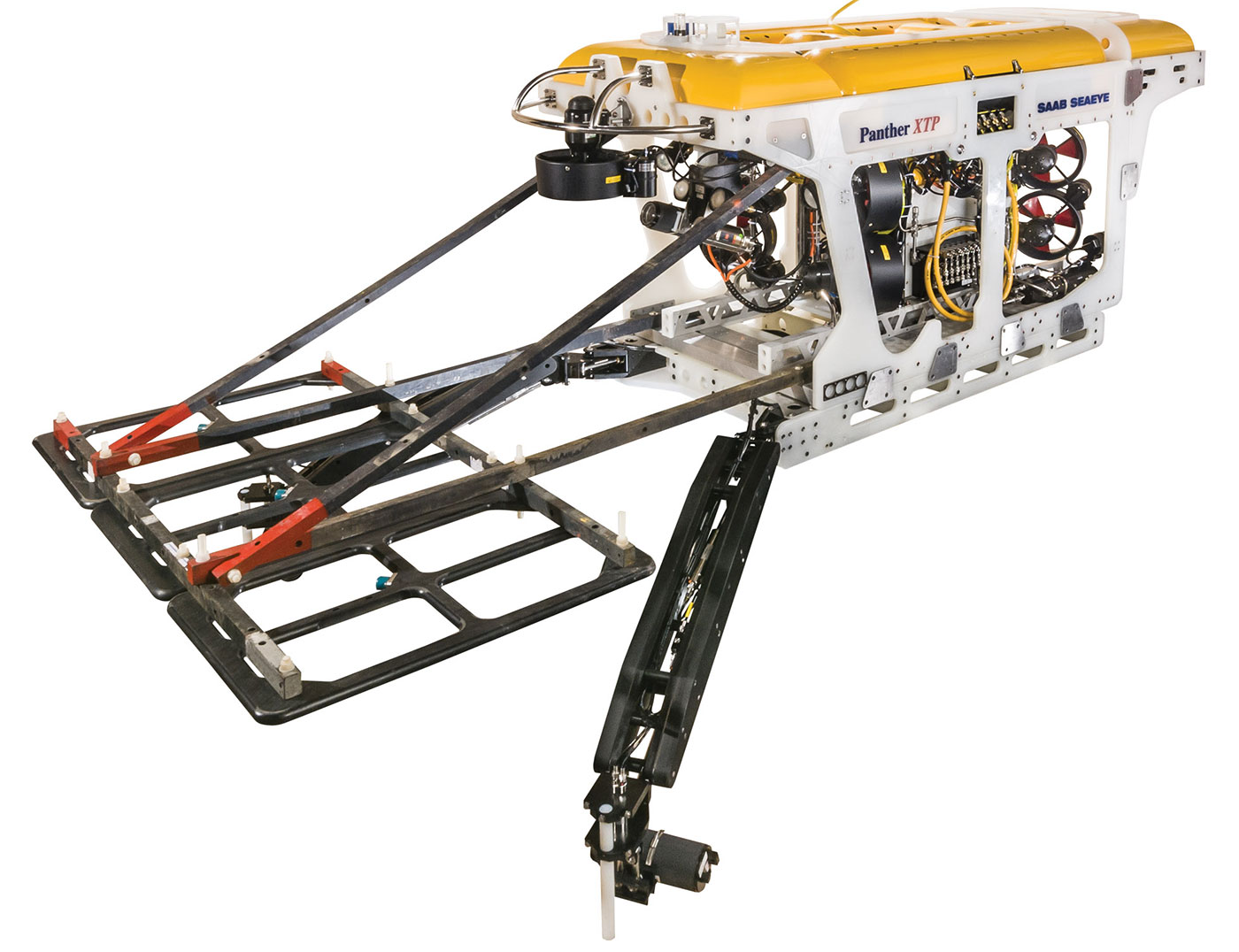

Pipeline survey wheeled skid with either three or four function camera boom arms. Also camera and LED light options available.

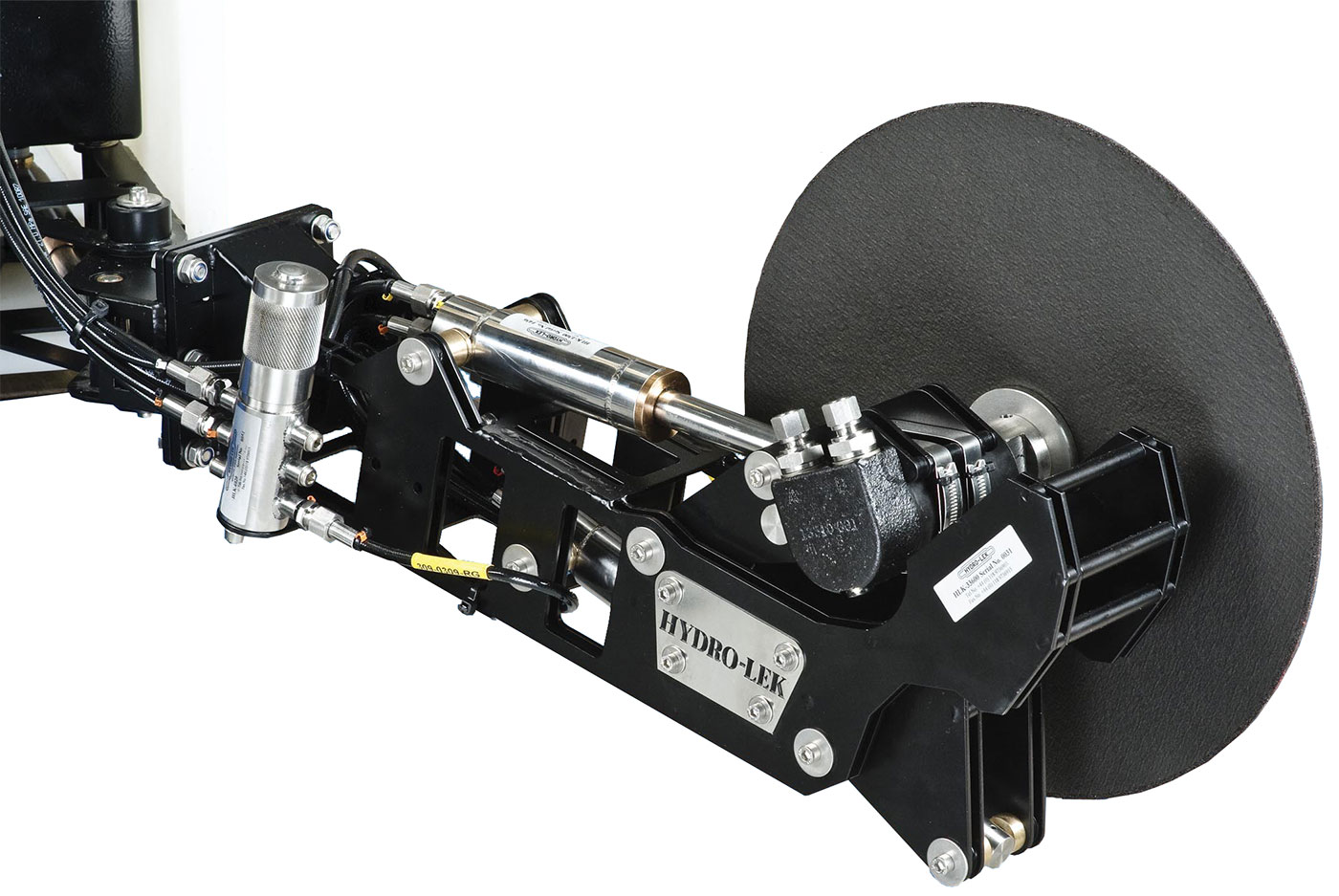

Rotary Cutter used for cutting through hoses and cables up to 4 inches thick. Requires a 4kW HPU.
High resolution colour or monochrome cameras fitted to either the front of the vehicle on tilt platform or on bracket at rear of vehicle. (CAM04)

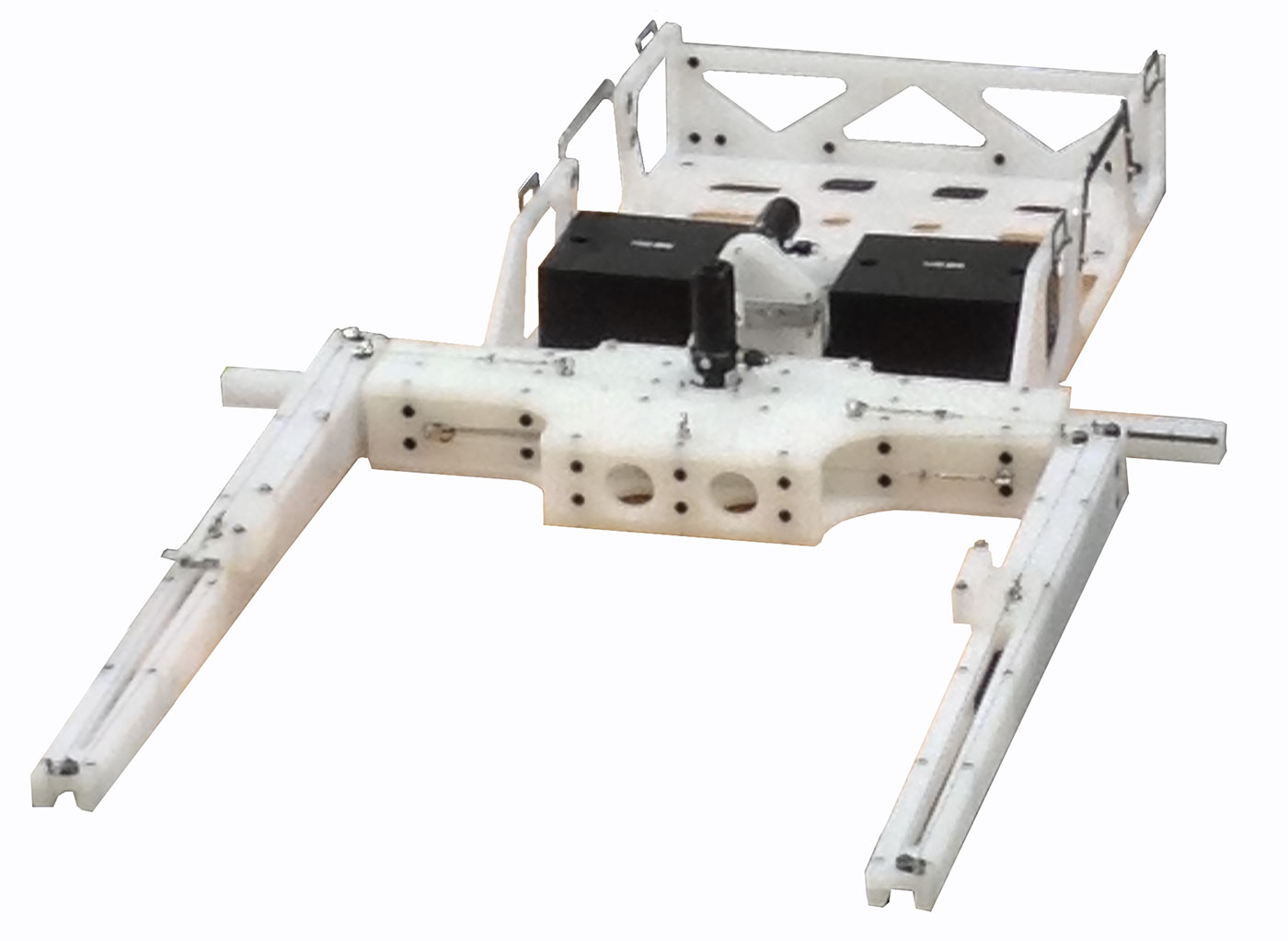

Flooded Member Detector (FMD) skid for mounting an FMD tool. The skid is fixed below the vehicle and is used for subsea inspections.
Laser options for video survey.

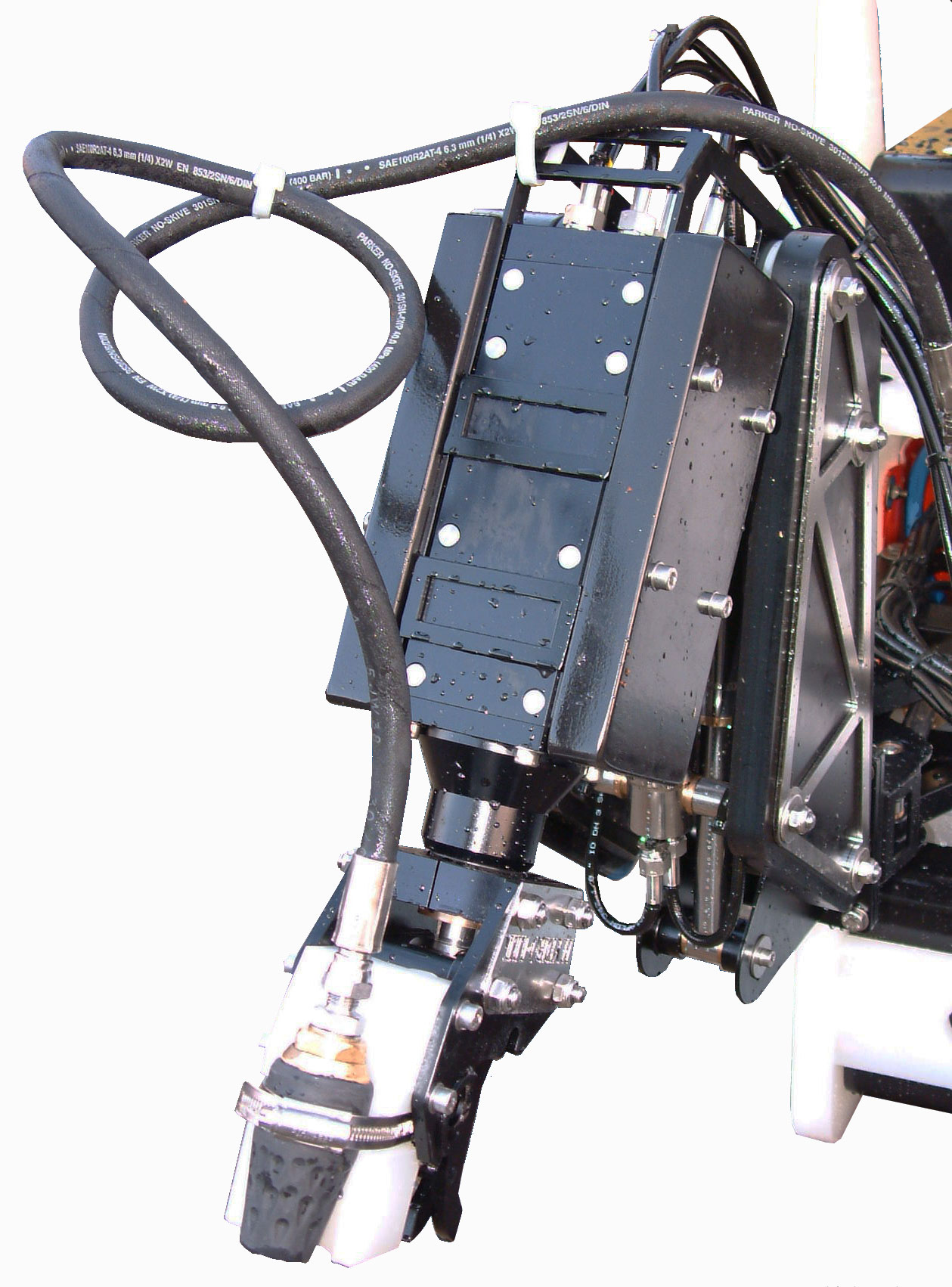

Water Jet System for cleaning operations. Requires three-phase, 4.5 kW power supply unit.

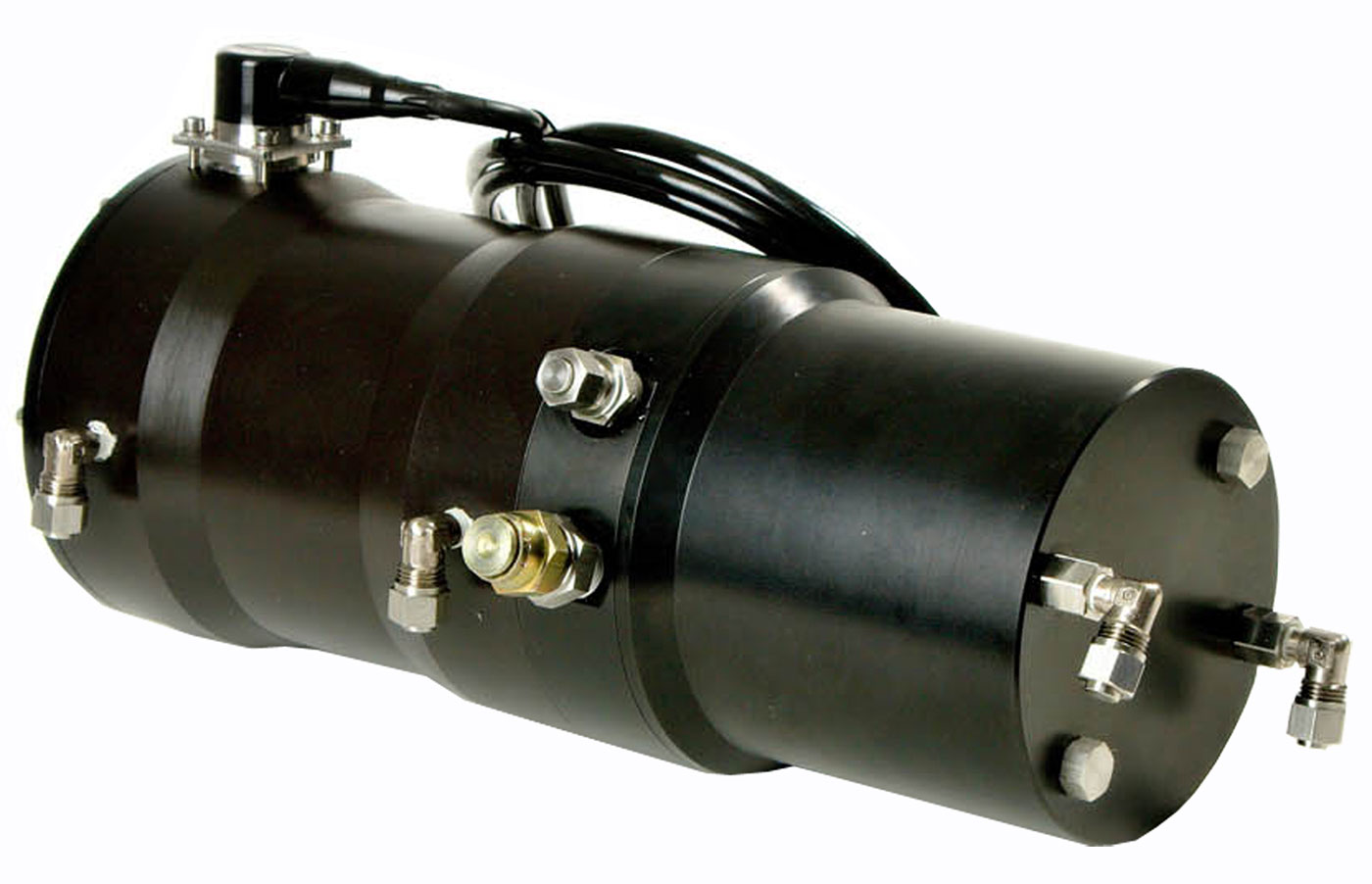

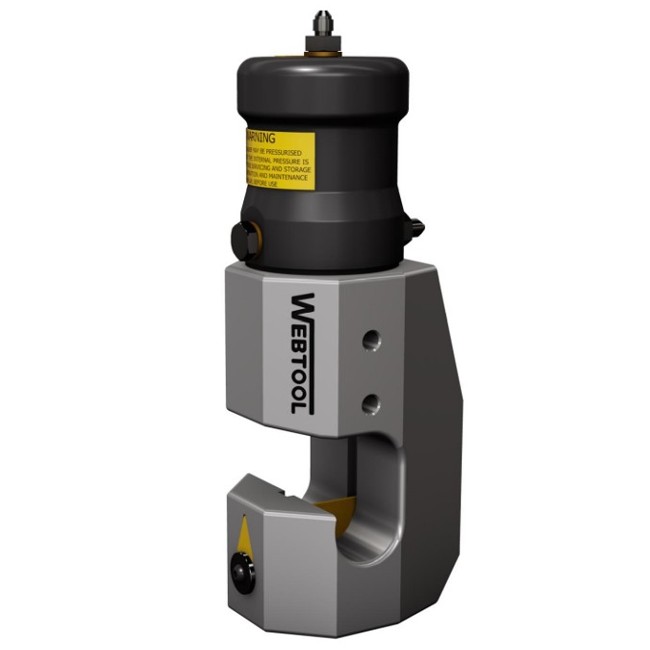

Compact cutter capable of cutting 38 mm diameter steel wire rope. Includes an intensifier and requires a 4kW HPU.
Cleaning brush incorporating a heavy duty brush plus an SM7 thruster motor.
Control cabin options include video recording unit, video matrix switcher, communications system and high-back pilot seat.
Ultrasonic thickness gauge to determine the level of corrosion present in a structure.
Cathode Potential Probe with either contact or proximity probe options available.
Additional 4kW HPU and control valve used for additional hydraulic tooling options.
High Definition (HD) camera for vehicle. (OE14-502)
Altimeter used to measure the altitude of vehicle above sea floor. Auto altitude option available. (PA200)
Bathymetric system with depth sensor and altimeter. Ethernet options available.

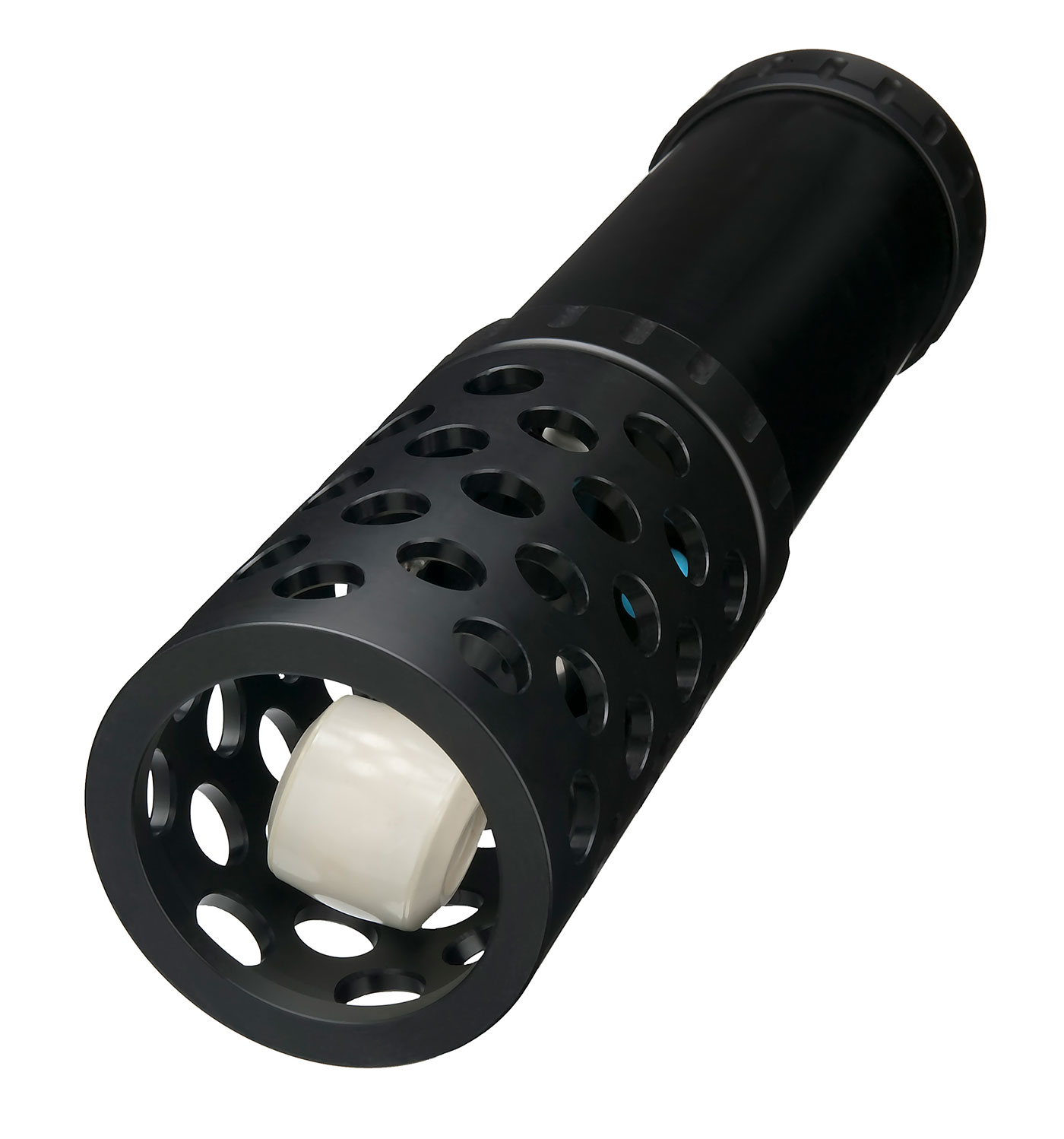

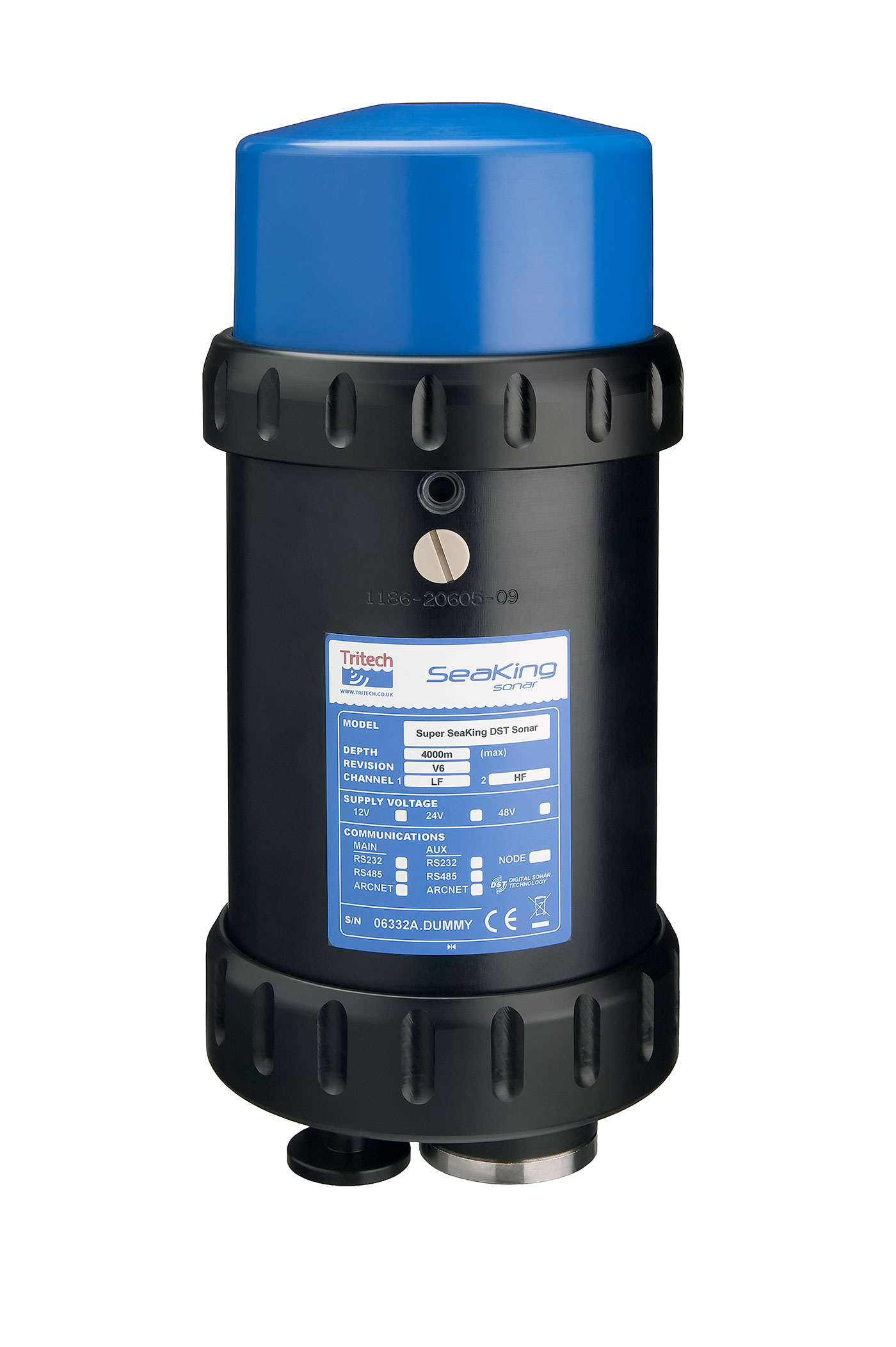

Scanning Sonar options with an integration kit and surface equipment.
Multibeam Sonar options with an integration kit and surface equipment. Ethernet options available for fibre optic vehicles.

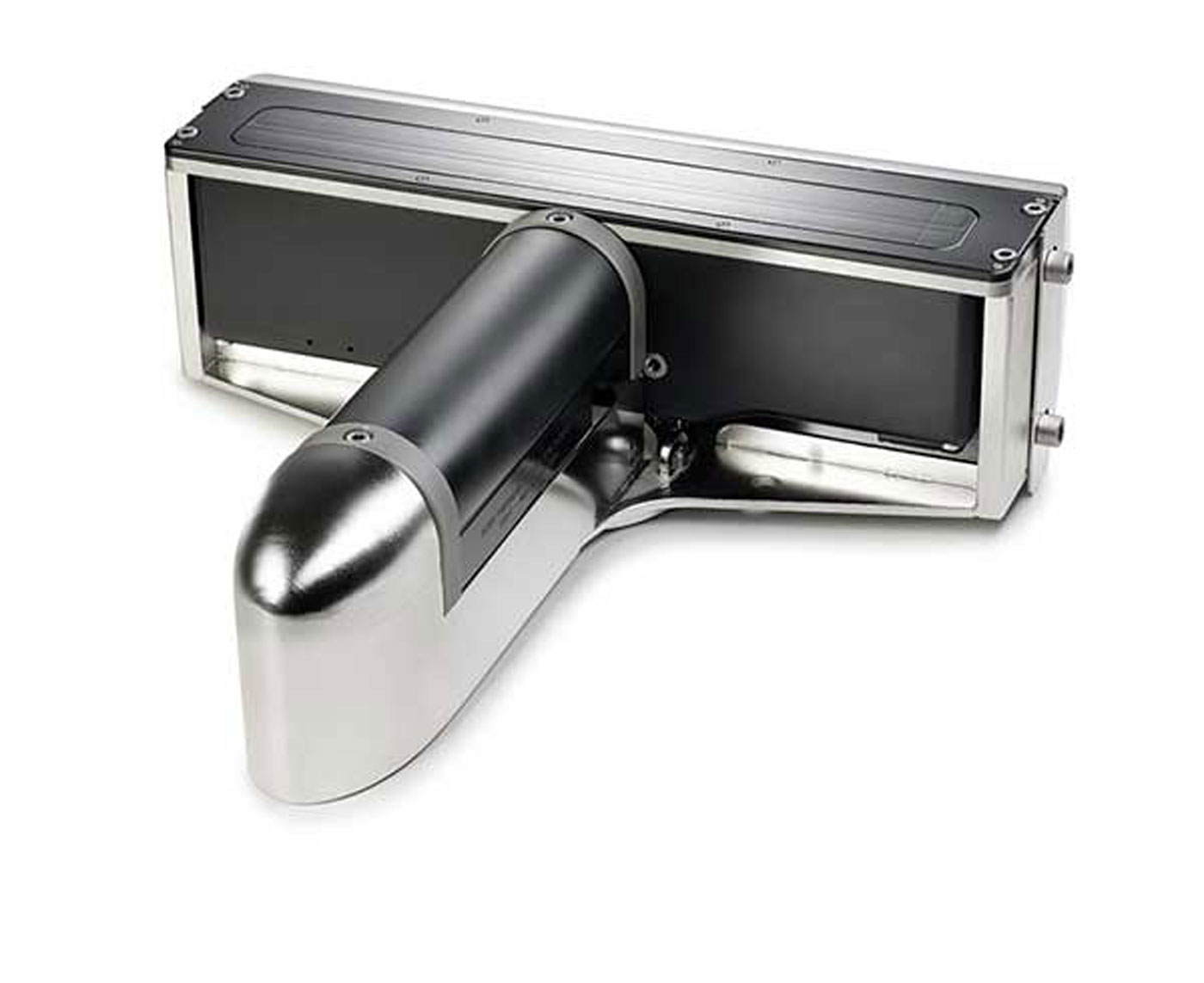

Dual Multibeam Echosounder (MBES) fitted to a forward frame.
Battery-operated, Xenon emergency strobe used to locate vehicle. (ST6K)
Electric Winch with variable speed and directional control. The winch has a capacity of 1,100m of 14mm diameter umbilical.

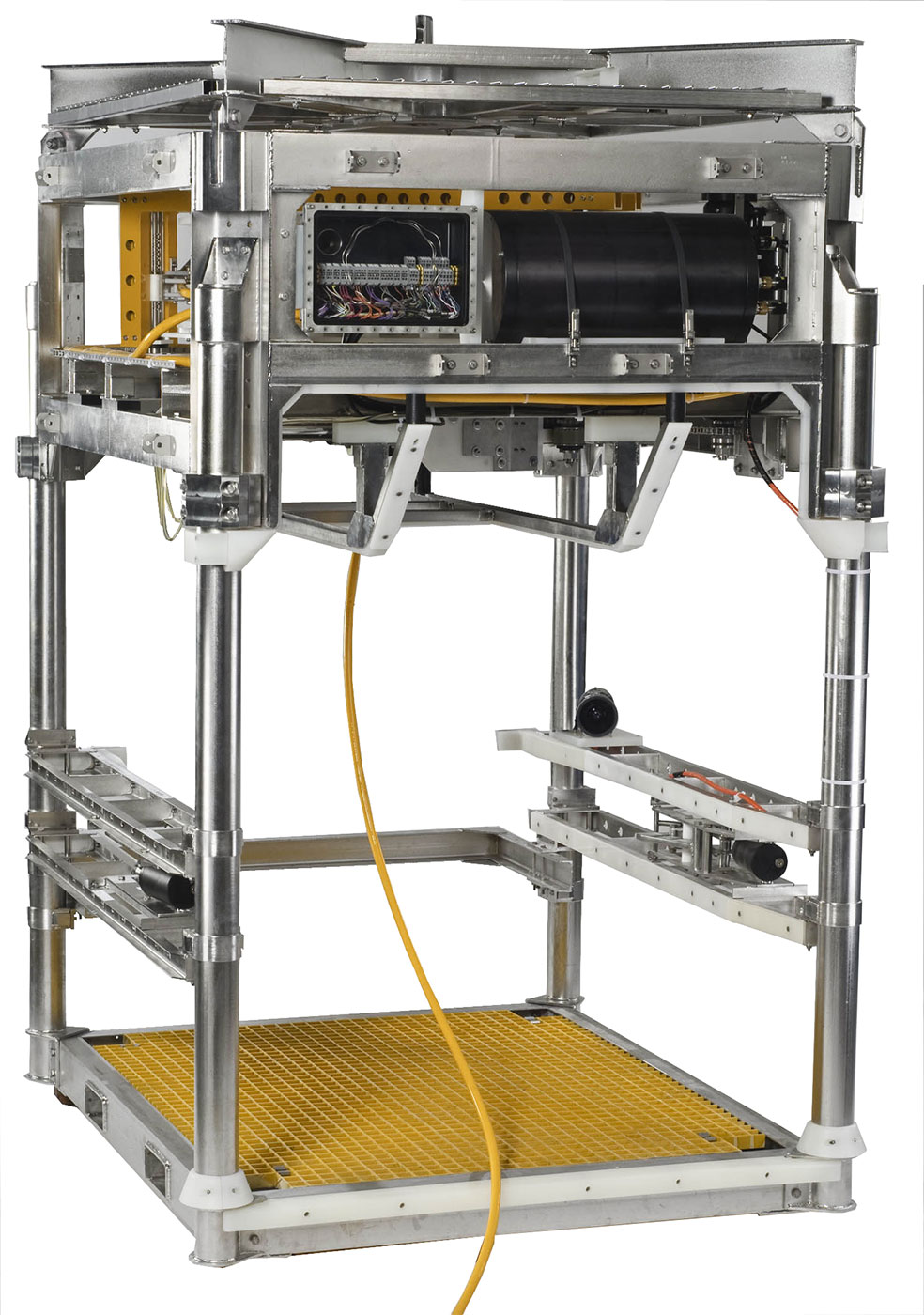

Tether Management System (TMS) Type 8 with 250 m of fibre optic tether allowing for the deployment of the ROV at working depth and also providing protection.

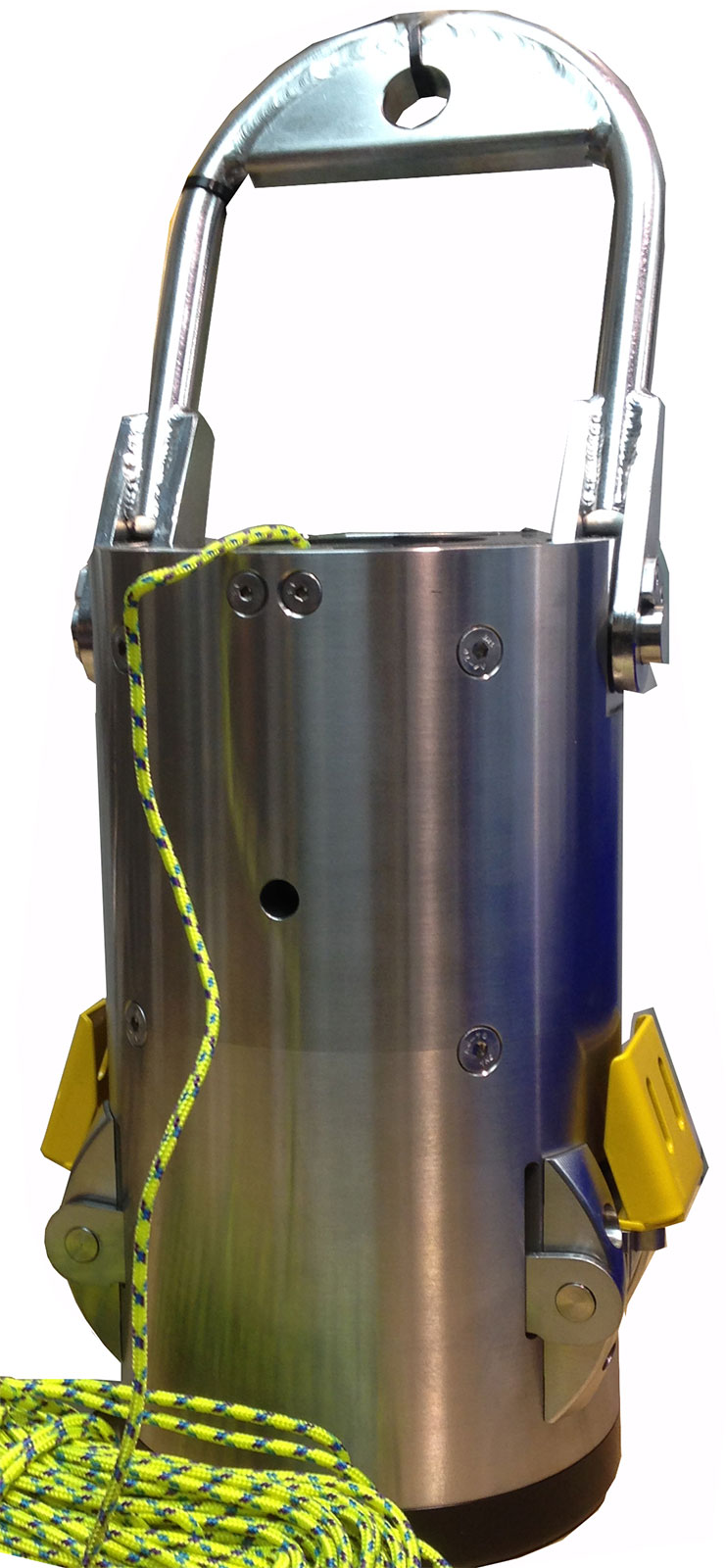

Running Lock Latch system used for launch and recovery to reduce the strain on the umbilical. Includes a latch release line to free the ROV from the lock latch.

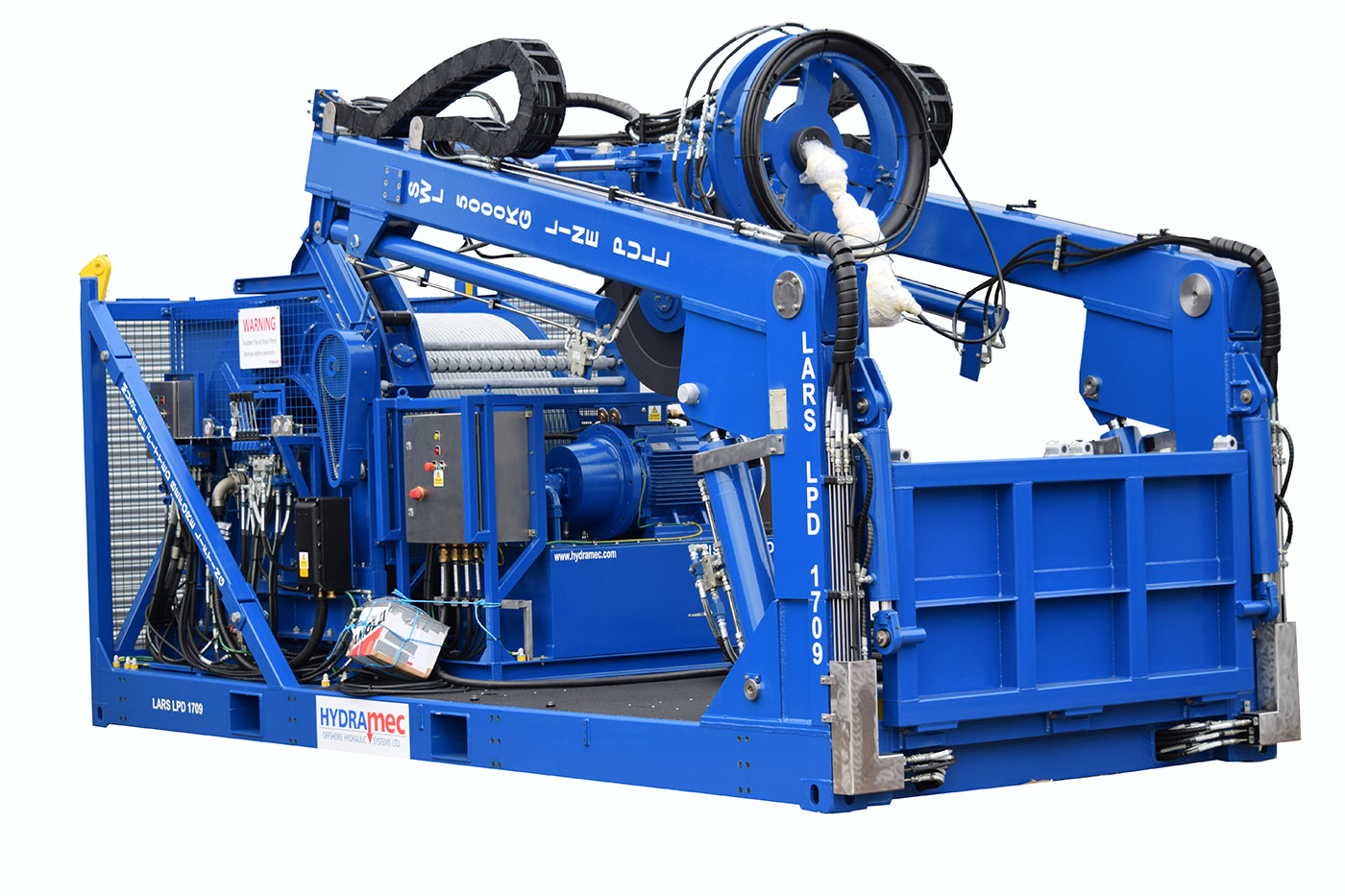

A-Frame Safe Area Launch and Recovery System (LARS) with Lock Latch or Snubber options. A Zone II upgrade option is available.

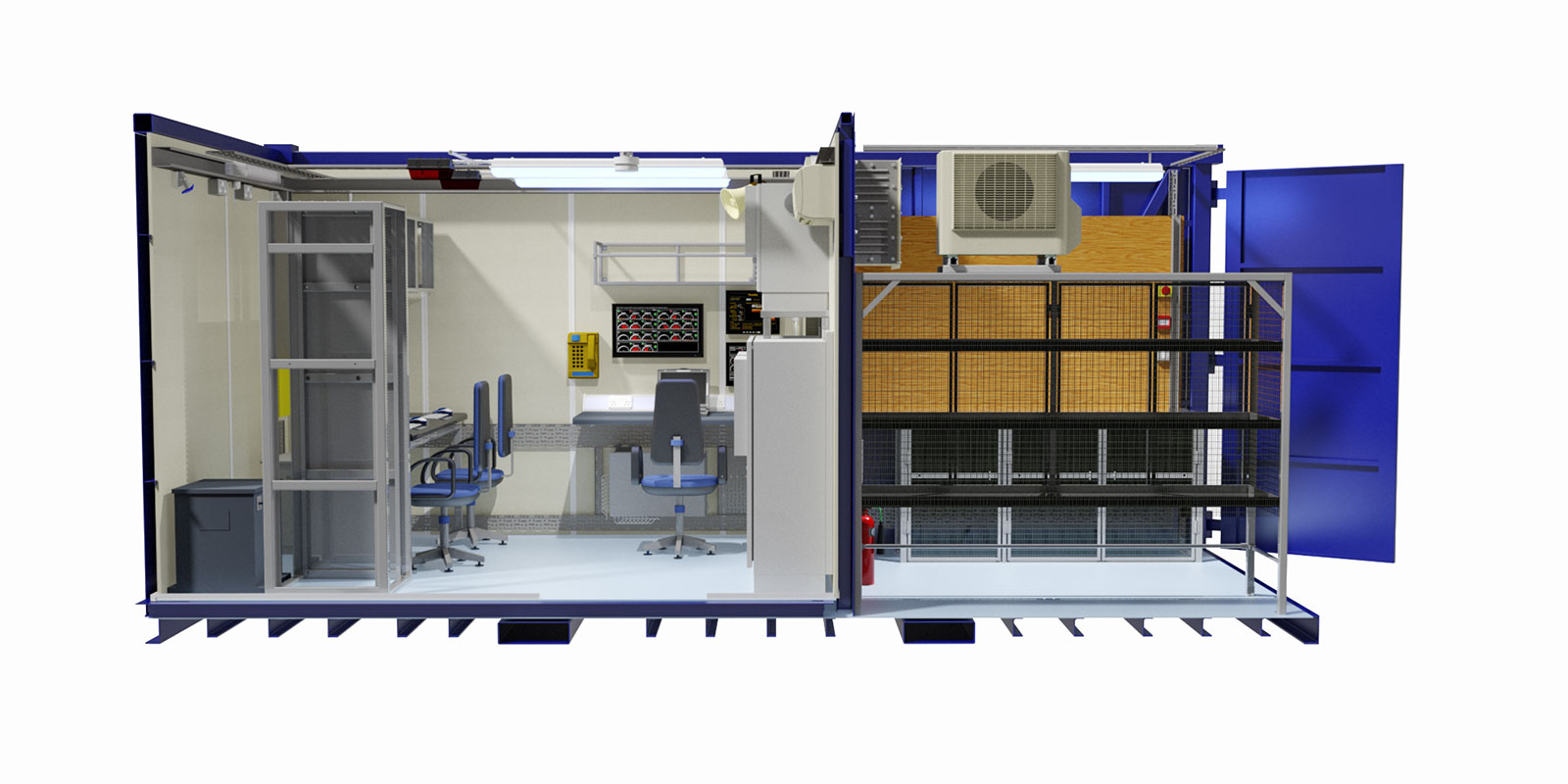

Safe Area 20ft split Control Cabin with a Pilot Control section and a separate high voltage PSU section. Fitted with electric power distribution panels, lighting, air conditioning, heating and 19 inch racks. An optional installed escape hatch is available as is a Zone II upgrade.

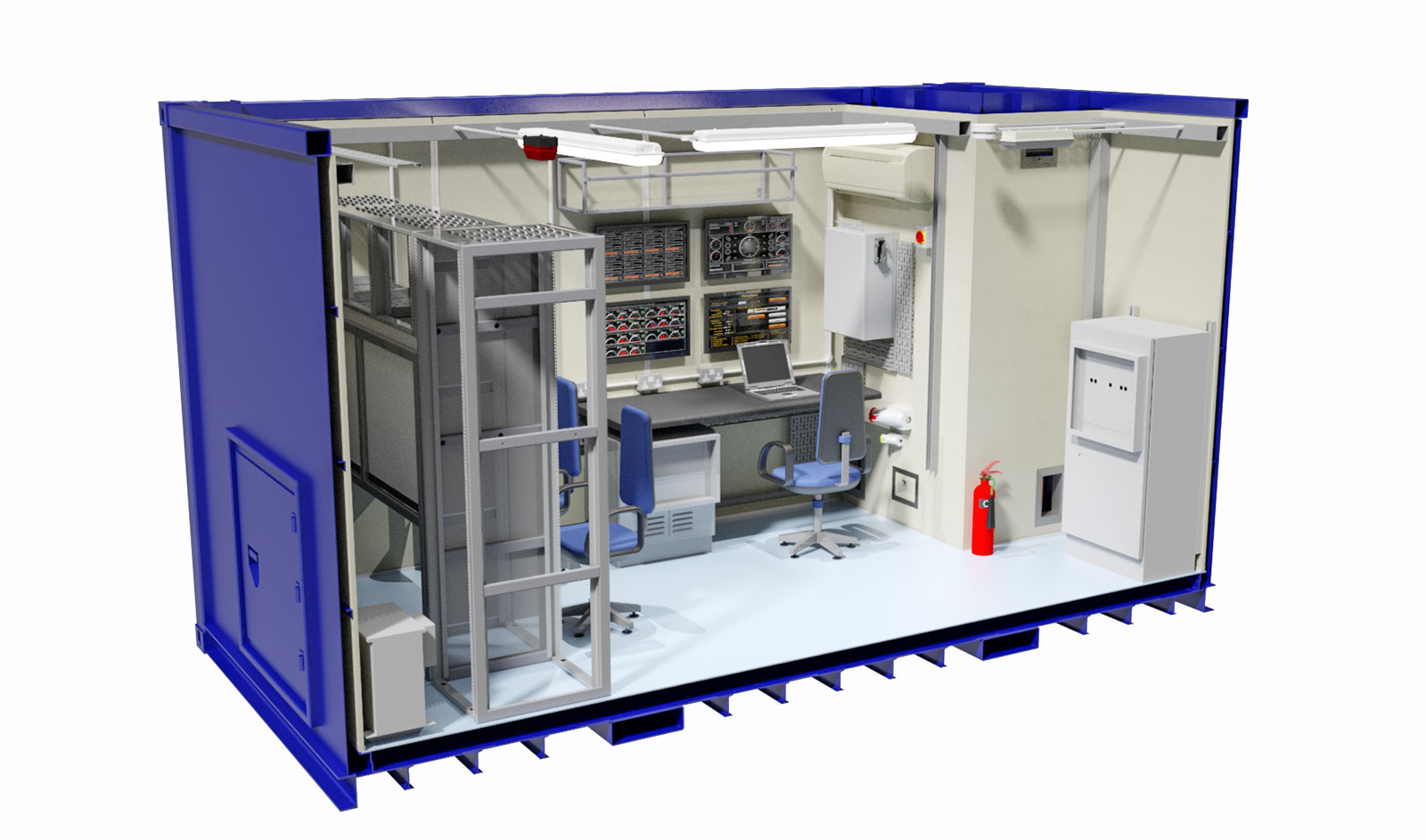

Safe Area Control Cabin (16 ft) fitted with electric power distribution panels and air conditioning. A Zone II upgrade option is available.

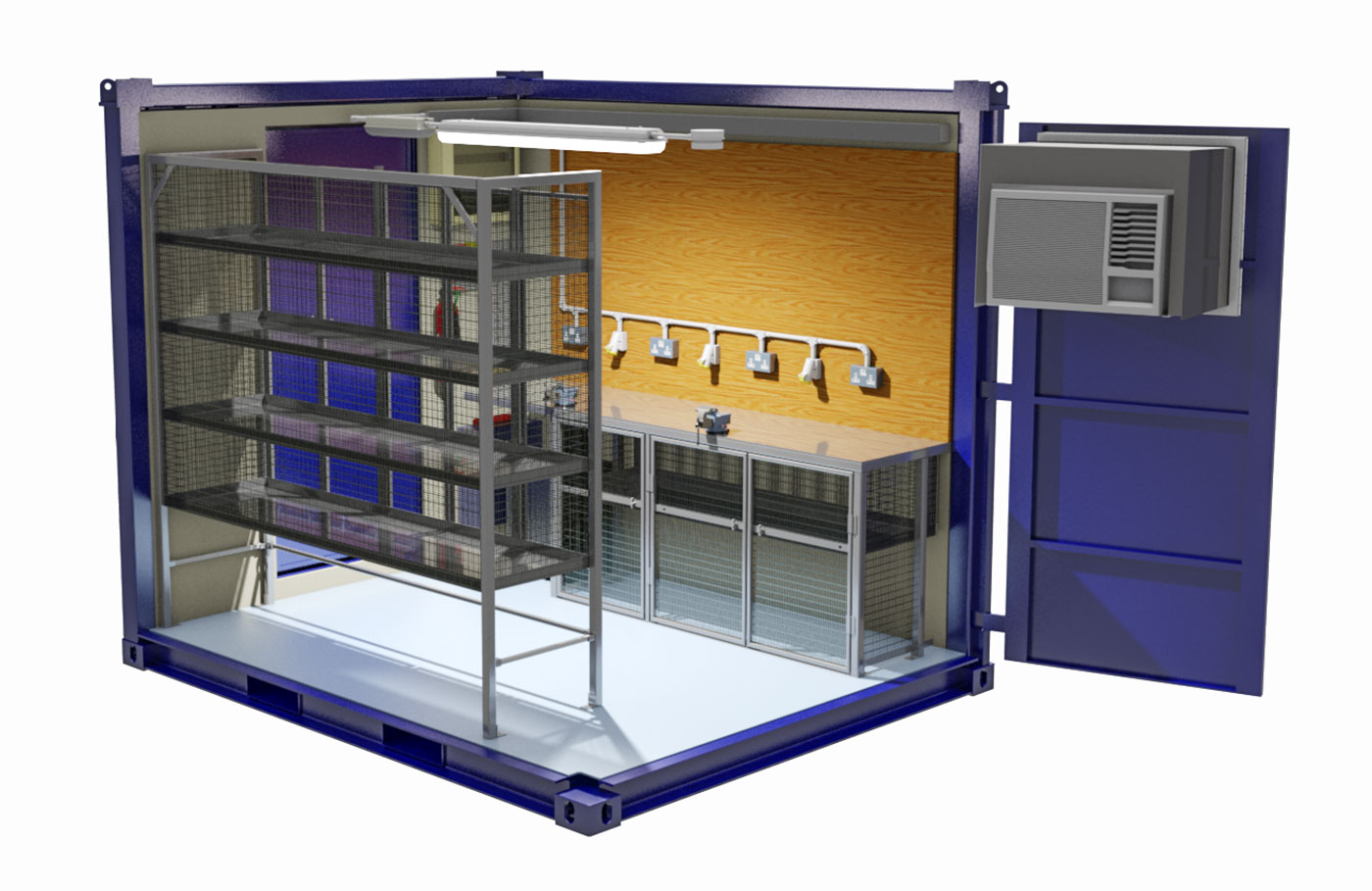

Additional cabin options include: 10 ft standalone workshop.

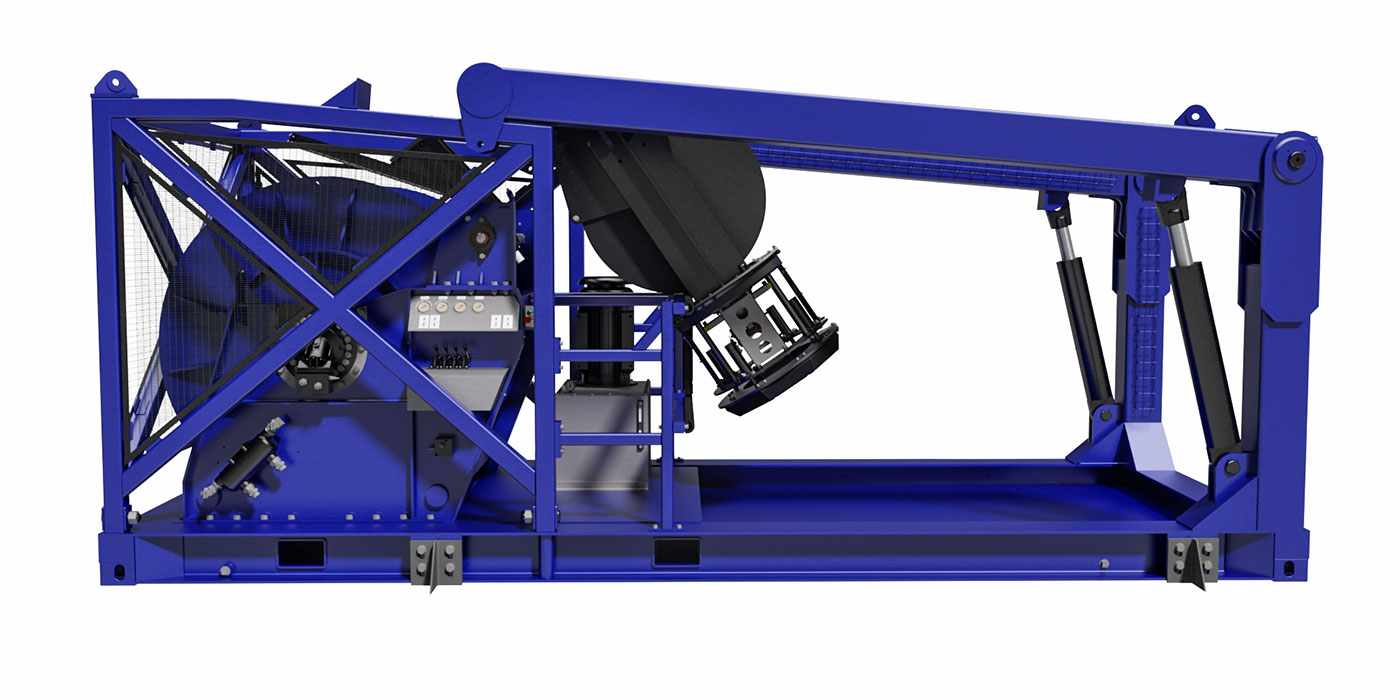

A-Frame Safe Area Launch and Recovery System (LARS) with 1100, 2200, or 3300m winch capacities. A Zone II upgrade option is available. Optional folding platform for additional work space.
