The Cougar-XT Compact, depth rated to 300m, is the shallow water version of the Cougar-XT. An extremely powerful vehicle, the Cougar-XT Compact is ideal for inspection applications where strong tidal currents are experienced.
The smaller chassis significantly reduces drag which, in combination with a high-performance thruster arrangement and a small diameter tether, offers unrivalled performance for its size and class.
Shallow water inspection vehicle with proven handling capabilities in strong currents and in tight spaces.
Low profile and lightweight designed to reduce drag and minimise the effect of current.
Selection of tooling options designed for easy integration and to deliver results for any shallow water project.
Surface Power Supply Unit and Surface Control Unit supplied as free standing units or fitted inside an air conditioned control container. An additional tooling power supply option is available.
Surface Equipment includes Hand Control Unit, keyboard and two colour monitors. An additional hand control unit is available for systems fitted with a manipulator skid.
Cabin Junction Box for connections between the surface and subsea. Including Twisted Pair connection for data and video transmission. Fibre Optic MUX upgrades available.
Operated as a free swimming ROV for depths up to 300 m.
ROV rated to 300 m fitted with four horizontal thrusters and two vertical thrusters supplied with 500 Volts DC, electronics pod, four LED lights, two high resolution cameras, a compass and a depth sensor for vehicle auto heading and auto depth. Auto altitude is available as an option when an altimeter is fitted.
Specification | Cougar-XT Compact |
Depth Rating (msw) | 300 |
Dimensions |
|
Length (mm) | 1300 |
Height (mm) | 784 |
Width (mm) | 900 |
Weight in air (kg) | 270 |
Payload (kg) | 60 |
Thrust |
|
Forward (kgf) | 170 |
Lateral (kgf) | 120 |
Vertical (kgf) | 110 |
Speed (knots) | 3.5 |
Power |
|
Power input phases | 3 |
Voltage (VAC) | 380-480 |
Option | 690 |
Frequency (Hz) | 50-60 |
Battery Capacity (kWh) | N/A |
Endurance (Hour) | N/A |
Acoustic tracking system to calculate position of vehicle fitted with an acoustic beacon.
Control cabin options include video recording unit, video matrix switcher, communications system and high-back pilot seat.

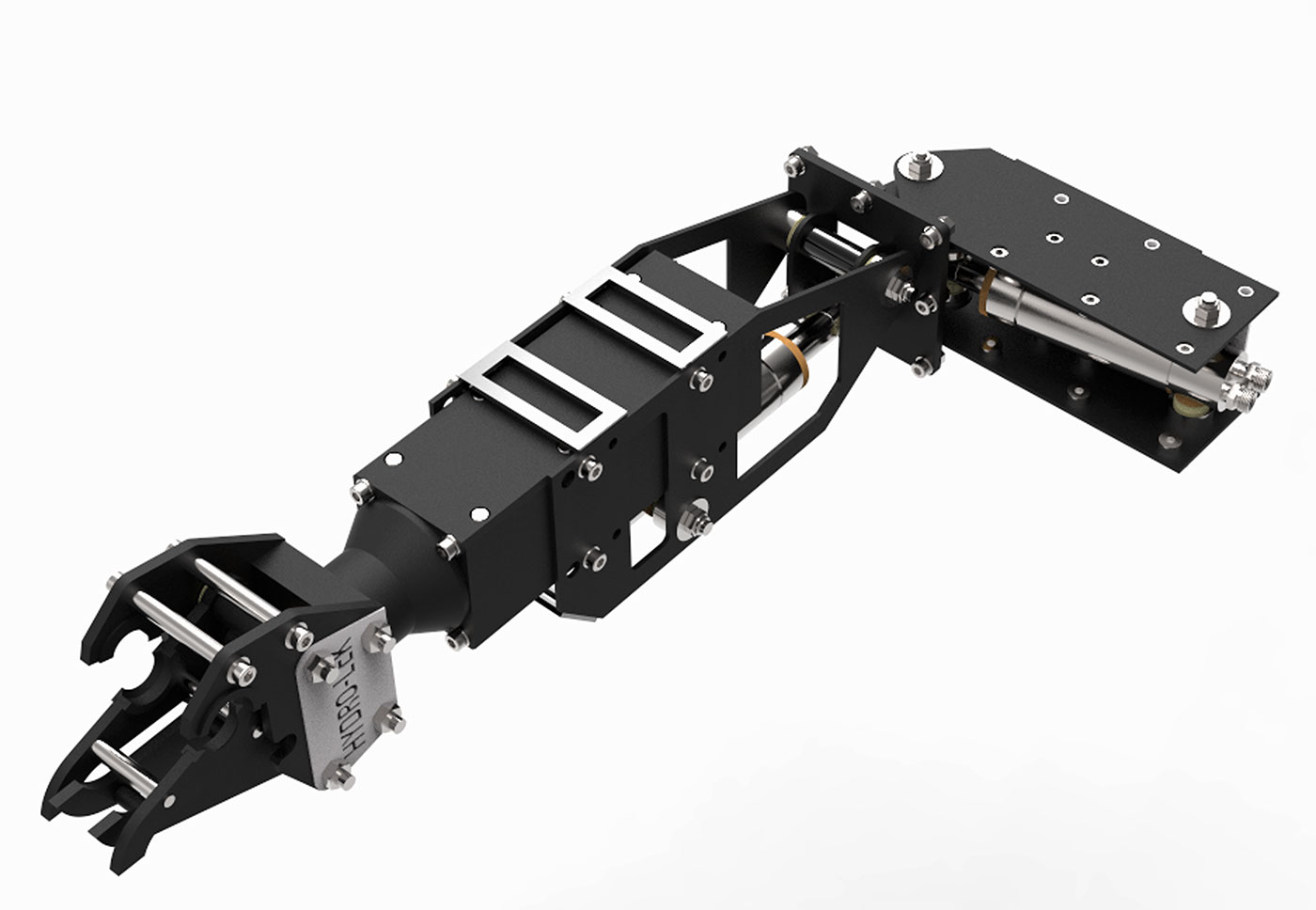

Four-function manipulator system fitted with quick disconnect fittings to switch between the cleaning brush and the anvil cutter. Manipulator camera options available. (HLK-4200)
Additional three-phase power supply unit used to power tooling options.
Compact cutter for cutting 25 mm diameter steel wire rope or 12 mm diameter steel bar.
High resolution colour or monochrome cameras fitted to either the front of the vehicle on tilt platform or on bracket at rear of vehicle. (CAM04)

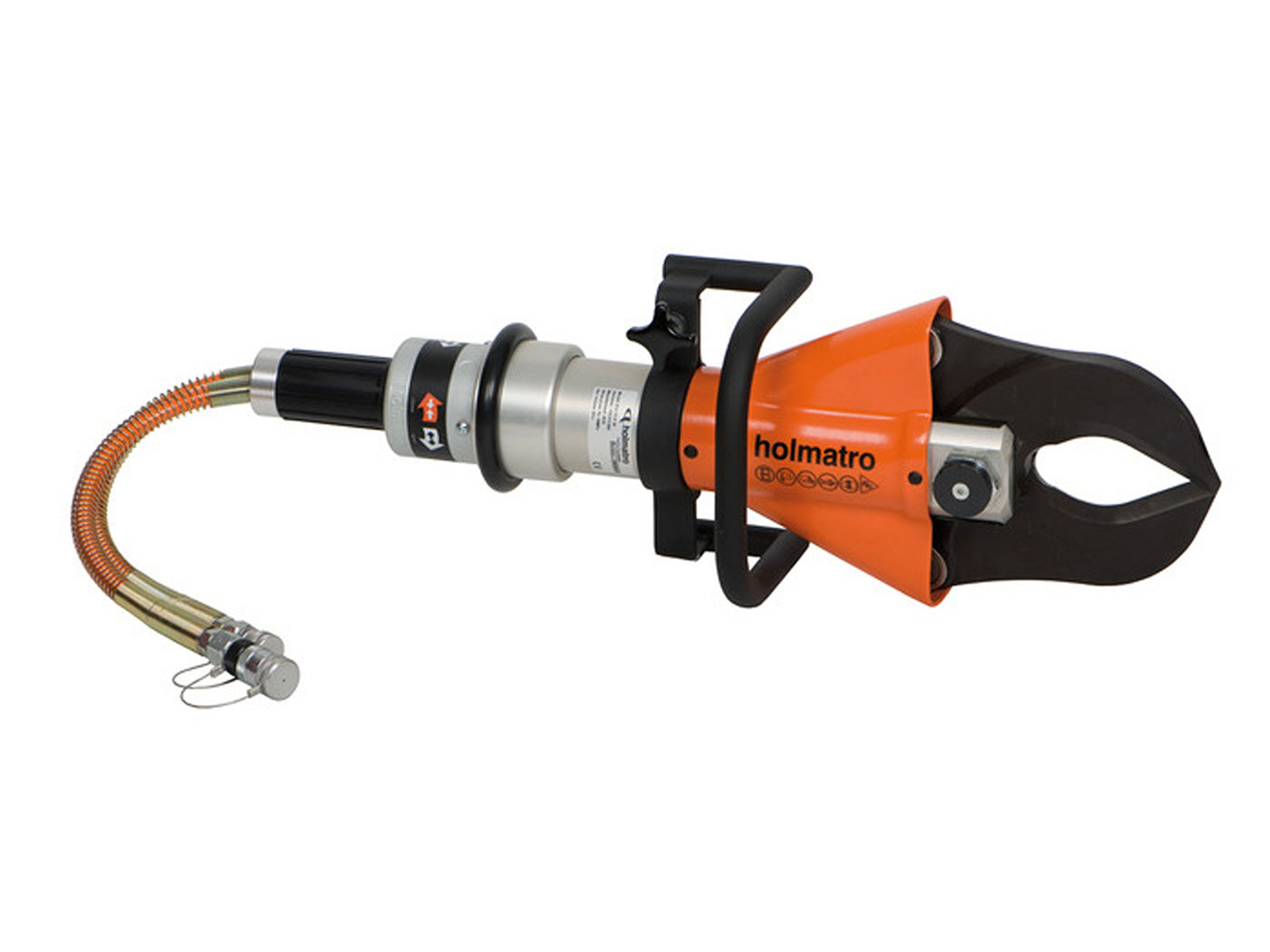

Holmatro Cutter with jaws opening to 144 mm. Requires deep wall tooling skid, additional buoyancy, tooling selector valve, a three-phase tooling PSU and a 4kW HPU.
Laser options for video survey.
Water Jet System for cleaning operations. Requires three-phase, 4.5 kW power supply unit.
Cleaning brush incorporating a heavy duty brush plus an SM7 thruster motor.
Ultrasonic thickness gauge to determine the level of corrosion present in a structure.
Multibeam Sonar options with an integration kit and surface equipment. Ethernet options available for fibre optic vehicles.
Cathode Potential Probe with either contact or proximity probe options available.
High Definition (HD) camera for vehicle. (OE14-502)
Altimeter used to measure the altitude of vehicle above sea floor. Auto altitude option available. (PA200)
Bathymetric system with depth sensor and altimeter. Ethernet options available.

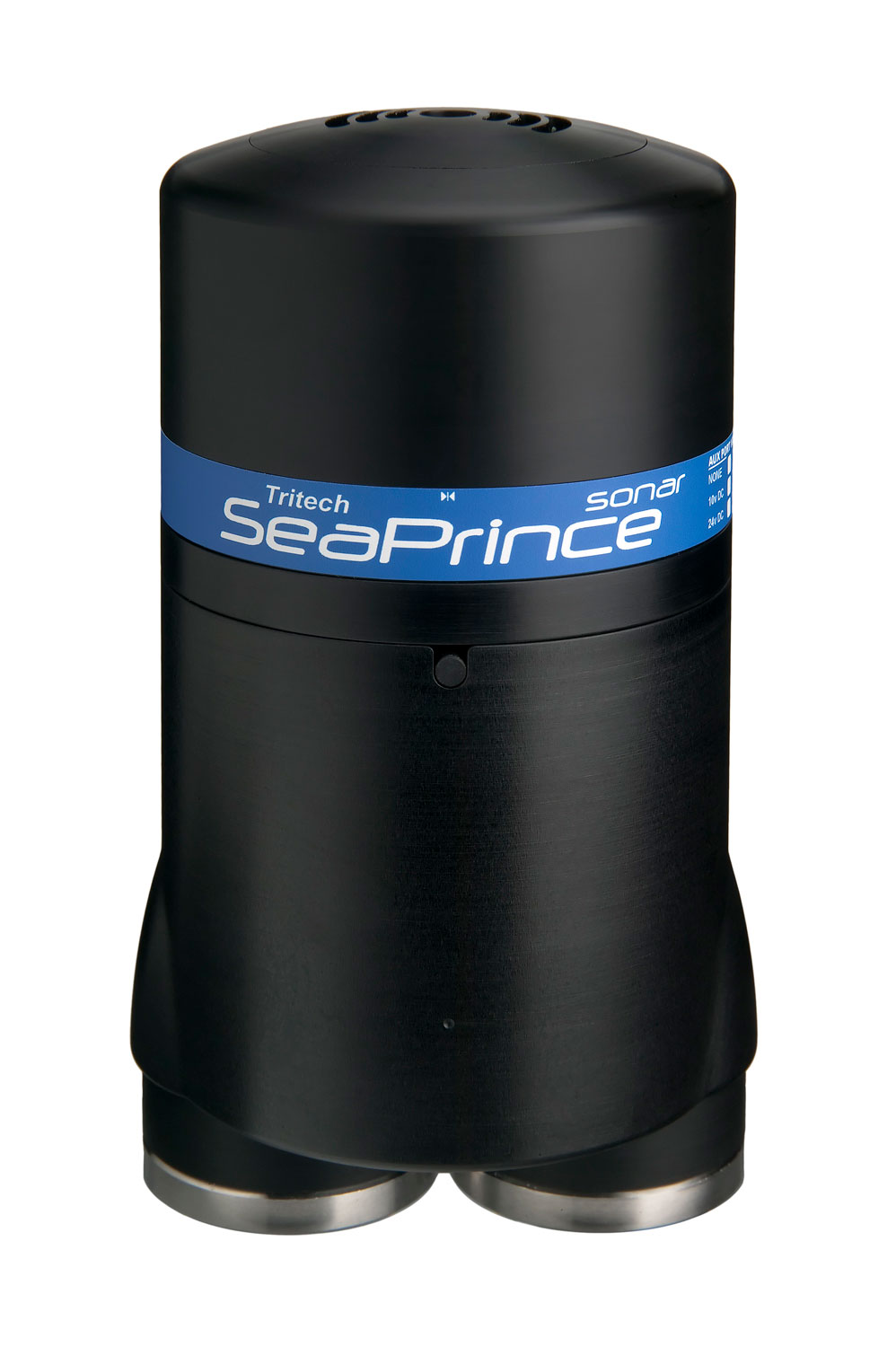

Scanning Sonar options with an integration kit and surface equipment.
Battery-operated, Xenon emergency strobe used to locate vehicle. (ST6K)
Electric Winch with variable speed and directional control. The winch has a capacity of 1,100m of 14mm diameter umbilical.
Running Lock Latch system used for launch and recovery to reduce the strain on the umbilical. Includes a latch release line to free the ROV from the lock latch.
A-Frame Safe Area Launch and Recovery System (LARS) with Lock Latch or Snubber options. A Zone II upgrade option is available.
Safe Area 20ft split Control Cabin with a Pilot Control section and a separate high voltage PSU section. Fitted with electric power distribution panels, lighting, air conditioning, heating and 19 inch racks. An optional installed escape hatch is available as is a Zone II upgrade.
Safe Area Control Cabin (16 ft) fitted with electric power distribution panels and air conditioning. A Zone II upgrade option is available.
Additional cabin options include: 10 ft standalone workshop.
